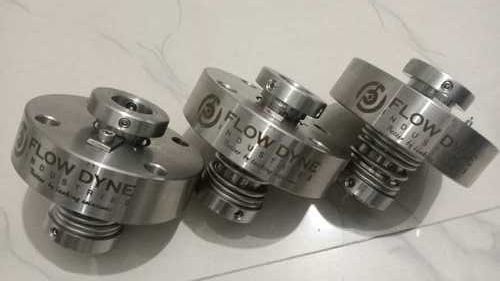

Single Semi Cartridge Seal

A single semicartridge seal is a type of mechanical seal used primarily in rotating equipment such as pumps to prevent leakage of fluids between the rotating shaft and the stationary housing Heres a breakdown of its components and how it works



 Components

1 Rotary Seal Face This part is attached to the rotating shaft It rotates with the shaft and maintains a contact surface with the stationary face



2 Stationary Seal Face Fixed to the housing or pump casing It faces the rotating seal face and helps create a seal to prevent leakage



3 Spring Often included to maintain constant pressure between the rotating and stationary seal faces ensuring a tight seal



4 Cartridge The assembly of the seal components into a single preassembled unit This simplifies installation and maintenance



 Features

 Ease of Installation The cartridge design allows for easier and quicker installation compared to traditional seals as it comes preassembled

 Reliability Designed to handle a range of pressures and temperatures depending on the materials used in the seal faces and the spring

 Maintenance Easier to replace or service because the entire seal assembly can be removed and replaced without disassembling the entire pump or equipment



 Applications

 Pumps Commonly used in centrifugal and positive displacement pumps

 Mixers Often found in various types of industrial mixers

 Compressors Used in different types of compressors to maintain pressure and prevent leakage



 Benefits

 Reduced Downtime The cartridge design minimizes the time needed for replacement

 Improved Seal Integrity The preassembled nature ensures proper alignment and seal performance

 Versatility Can be used in various industries and applications where reliable sealing is crucial



 Considerations

 Compatibility Ensure the seal is compatible with the specific application regarding pressure temperature and fluid type

 Material Selection Materials should be chosen based on the operating environment to avoid premature wear or failure



If you have any specific questions about installation maintenance or application feel free to ask
